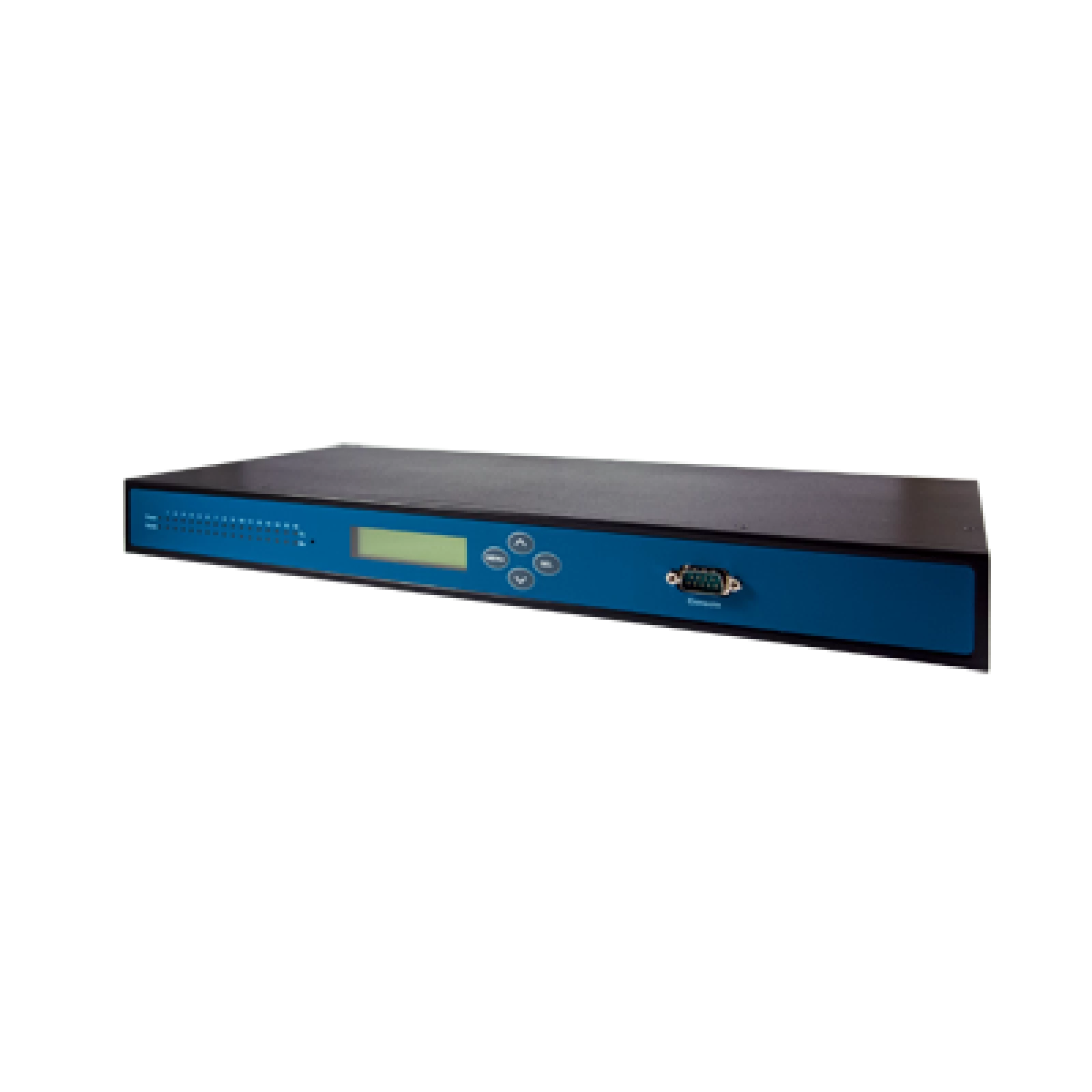

Make Serial Devices Ready to the Network The Industrial Serial Device Server is a gateway between Ethernet (TCP/IP) and serial signal communications; allowing almost any serial device to be connected to a new or existing Ethernet network. By encapsulating serial data and transporting it over Ethernet, the Serial Device Server offers full-duplex and bi-directional data seamlessly between the serial ports and the Ethernet network. Easy to Use Flexible configuration options enable this unit to be setup over Ethernet by Telnet, Web browser, Serial Console, or our Windows utilities. Packed in a rugged metal housing with 19-inch rack mount and 100~240VAC or 24-48VDC power input range. The LAN port 1 and LAN port 2 can be assigned to different subnets. This feature gives the user flexible network manageability. Alternatively, the LAN port 1 and LAN port 2 can be assigned to the same IP network. It will enable the network to recover rapidly from failure and fault, so that the failures and faults will be bypassed. Specially Designed for Automation Fields In industrial and manufacturing automation fields, The Serial Device Server is used as a field device to connect the Ethernet through TCP/IP protocol directly. It is also specially designed for conjunction with PLCs, HMIs, Barcode Scanners, Data Terminals, Electronic Kanbans, Shop Floor Control Systems, and Pick-to-Light Systems.

Network Interface
Speed	IEEE 802.3 10BaseT IEEE 802.3u 100BaseT(X)
LAN Mode	Dual Subnets or Network Redundancy
Connector ports	2x 10/100BASE-T(X) RJ-45

Serial Interface
Connector	RJ45 RS-232/422/485 software selectable. For the different modes supported in each model, refer to the ordering information.
Ports	8
Baud Rate	50 ~ 921,600 bps software selectable
Data Bits	5, 6, 7, 8 software selectable
Stop Bits	1, 2 software selectable
Parity	None, Odd, Even, Space, Mark
Flow Control	None, Xon/Xoff, RTS/CTS
Isolation	2.5 kV (-A version only have isolation, please refer to ordering)

Software
Protocols	IPv4, ICMP, TCP, UDP, DHCP Client, SNMP, HTTP, Telnet, RFC2217, NTP, DNS, SMTP, Syslog
Configuration	Atop Management Utility, Web UI, Telnet, Serial Console
VirtualCOM	Windows/Linux redirection software
Link Modes - TCP Client	Single destination or VirtualCOM
Link Modes - TCP Server	4 Connections; VirtualCOM or reverse Telnet
Link Modes - UDP	Up to 4 Ranges IP

Power	Value
Input Voltage	DC version: 24 - 48VDC; US-EU version: 100~240 VAC (EU or US Plug)
Input Current	DC version: 0.54 A @24VDC; US-EU version: 0.21A@100VAC
Power Consumption	Approximately 21 W (Max)
Connector	DC version: 5.08mm 3-pin Lockable Terminal Block EU-US version: IEC 60320-1 C14 AC Power Inlet
Power Redundancy	No
Reverse Polarity Protection	Yes (DC version only)
Relay Output	Yes (1)

Physical Characteristics	Value
Housing	IP30 SPCC housing
Dimension (W x H x D)	436 mm x 43.5 mm x 200 mm
Weight	3,000g (8-port version); 3,200 g (16-port version)
Installation	19’’ Rack-Mount (Kit included)
Reset Button	Yes

Environmental Limits
Operating Temperature	-20°C~70°C (-4°F~158°F)
Storage Temperature	-40°C~85°C (-40°F~185°F)
Ambient Relative Humidity	5%~95%, 55°C (Non-condensing)

Certification	Standard
Safety	EN 60950-1
EMC	EN 55022: 2010, EN 55024: 2010, FCC Part 15B, Class A
RoHS 2	Yes
REACH	Yes

Standard	Item	Test	Value	Level	Criteria
IEC 61000-4-2	ESD	Contact Discharge	±8kV	4	B
IEC 61000-4-2	ESD	Air Discharge	±15kV	4	B
IEC 61000-4-3	RS	Radiated (enclosure)	10 V/m	3	A
IEC 61000-4-4	EFT	Signal Port	±2.0KV	4	B
IEC 61000-4-4	EFT	DC Power Port	±2.0kV	3	B
IEC 61000-4-4	EFT	AC Power Port	±4.0kV	4	B
IEC 61000-4-5	Surge	AC Power Port (L-2-L)	±2.0KV	4	A
IEC 61000-4-5	Surge	AC Power Port (L-2-E)	±4.0KV	4	A
IEC 61000-4-5	Surge	DC Power Port (L-2-L)	±1.0KV	2	A
IEC 61000-4-5	Surge	DC Power Port (L-2-E)	±1.0KV	2	A
IEC 61000-4-5	Surge	Signal Port (L-2-E)	±2.0KV	3	B
IEC 61000-4-6	CS	AC Power Port	10 V rms	3	A
IEC 61000-4-6	CS	DC Power Port	10 V rms	3	A
IEC 61000-4-6	CS	Signal Port	10 V rms	3	A
IEC 61000-4-8	PFMF	Enclosure ports	1 A/m continuous	3	A
IEC 61000-4-11	DIP	AC Power Port	Dips: >95% dip, 30% reduction	-

Certification	Standard
Shock	IEC 60068-2-27
Drop	IEC 60068-2-32
Vibration	IEC 60068-2-64
Warranty	5 Years
MTBF	TBD

MODEL NAME	PART NUMBER	DESCRIPTION	ETHERNET PORTS	SERIAL PORTS
SE5408A2-N-DC	1P1SE5408A2006G	8-Port Industrial Serial Device Server, RS-232/422/485 Software Selectable, DC TB3	2 (RJ45)	8 (RJ45)
SE5408A2-N-US	1P1SE5408A2005G	8-Port Industrial Serial Device Server, RS-232/422/485 Software Selectable, AC Inlet, US Plug	2 (RJ45)	8 (RJ45)
SE5408A2-N-EU	1P1SE5408A2015G	8-Port Industrial Serial Device Server, RS-232/422/485 Software Selectable, AC Inlet, EU Plug	2 (RJ45)	8 (RJ45)

MODEL NAME	PART NUMBER	DESCRIPTION
SDR-75-24	50500752240001G	75W/3.2A DIN-Rail 24VDC power supply with 88~264VAC / 124~370VDC input
AD17-24C (US-Y)	50500151240002G	Y-Type power adaptor,100-240VAC input, 0.6A @ 24VDC output, US plug
AD17-24D (EU-Y)	50500151240012G	Y-Type power adaptor,100-240VAC input, 0.6A @ 24VDC output, EU plug
GDC-120	59906861G	120mm copper woven grounding cable
CBL-RJ45(8P)-DB9(M)-90	50891781G	RJ45 to DB9 Male Cable, 90cm
CBL-RJ45(8P)-DB9(M)-200	50891951G	RJ45 to DB9 Male Cable, 200cm
CBL-RJ45(8P)-DB9(F)-90	50891791G	RJ45 to DB9 Female Cable, 90cm
CBL-RJ45(8P)-DB9(F)-90-C	50891971G	RJ45 to DB9 Female Cross Over Cable, 90cm
CBL-RJ45(8)-DB9(F)-200-C	50891961G	RJ45 to DB9 Female Cross Over Cable, 200cm
RMK-718-Black	70100000000040G	Rack Mount Mounting-Kit, Black
Power Cable (US)	50801041G	6 feet Power Cable, US
Power Cable (EU)	50801051G	6 feet Power Cable, EU
Fuse	50709441G	Fuse
