Managed Switches

EHG7508 Series

8-Port Industrial Managed Gigabit PoE Switch, Profinet certified, DIN-Rail Mount

  • 8 x 10/100/1000 BASE-T(X) RJ45 ports or 1000 BASE-X SFP slots
  • 8 x 802.3af/ 802.3at Power over Ethernet ports, with maximum 30W PoE power per port and maximum 240 W device power budget
  • Powerful Switching Platform, supporting Redundancy advanced Protocols, such as ERPS, RSTP, STP, MRP (Client) and compatible rings
  • Profinet CC-B v2.33 certified
  • IEEE 1588v2 Precision Time Protocol Hw-Based Transparent clock
  • CE/FCC/UL and NEMA TS-2 Certified for Traffic Control Applications
  • EN50155 and EN50121-4 certified for Railway and Trackside applications
  • Works from -20°C~70°C
  • Security features based on IEC62443-4-2

The EHG7508 Series is an Industrial Grade Managed Gigabit Ethernet PoE Switch. Designed to provide a highly reliable, fault-tolerant, extremely fast network connection in a harsh environment, EHG7508 Series equips two terminal blocks to provide dual redundant power inputs with Reverse Polarity Protection and allows field engineers to build up a stand-alone fault alarm system. EHG75XX family is UL, CE, FCC and NEMA TS-2 certified, allowing the use in Traffic Control Applications.

Within its compact DIN-Rail housing design, the EHG7508 series allows you to choose between different port combinations: 10/100/1000 BASE-T(X) RJ45 port, 1000 BASE-X SFP port and IEEE 802.3af/at compliant PoE RJ45. EHG7508 provide, in its 8-PoE-Port Version, up to 240W power budget.

This is the right choice if you want to set up a reliable network environment with its intelligent features and keep equipment connected all the time, even in case of temporary network breakdowns through RSTP, ERPS Rings and MRP (client) redundancy. Being multiple Compatible Rings also supported, ATOP can be the best choice to have a painless enhancement of an existing infrastructure that doesn’t jeopardize network Topology and existing working pattern. To prevent network intrusions, it is necessary to have a good accessing control mechanism that can identify, authenticate and authorize users. EHG7508 support user account, password policy, and authentication interface managements functions that comply with IEC62443 standard.

Being Profinet CC-B v2.33 certified, this switch Series is Automation and IoT ready. Profinet allows wired and wireless combinations for an array of connectivity options, providing a more effective backbone for your automation operations.

Having undergone environmental testing to ensure reliable performance under a variety of power supply conditions, such as voltage variations, power interruptions, and supply changeovers, this switch Series is fully EN50155-certified for today’s demanding railway applications, as well as complying with essential sections of EN50121-4 for ground equipment.
Switch Properties Value
Priority Queues 8
VLAN Table 4,096
MAC-Based VLAN 512
VLAN ID Range VID 1 to 4,094
Trunk Group 4
Static IGMP Groups 128
Dynamic IGMP Groups 256
MAC Table Size 16k
Packet Buffer Size 1.5 MB
Jumbo Frame 9216 Byte
Ethernet Standard -
Standards IEEE 802.3af / 802.3at for Power-over-Ethernet IEEE 802.3/802.3u for 10BASE-T/100BASE-T(X) IEEE 802.3ab for 1000BASE-T IEEE 802.3z for 1000BASE-X IEEE 802.3x for Flow Control IEEE 802.1d-2004 for Spanning Tree Protocol IEEE 802.1w for Rapid Spanning Tree Protocol IEEE 802.1s for Multiple Spanning Tree Protocol IEEE 802.1q/p for VLAN Tagging and Class of Service IEEE 8021x for Authentication IEEE 802.3ad for Port Trunk with LACP IEEE 802.3az for Energy Efficient Ethernet
Protocols IPv4, IPv6, IGMPv1/v2/v3, IGMP Snooping, GARP, GMRP, GVRP, SNMPv1/v2c/ v3, SNMP Inform, ICMP, Telnet, SSH, Client/IP-port-mapping, BootP, TFTP, SMTP, SMTP (Gmail), RMON, HTTP, HTTPS, Syslog, MRP (Client), LLDP, 802.1x, EAP,RADIUS, TACACS+,Mirror port, QoS, ACL, ITU-T G.8032 ERPS Ring, STP, RSTP, MSTP, Compatible Ring/Chain, U-Ring, NTP Server/Client, Serial Console,Modbus/TCP, IEEE 1588 PTP V1/V2,UDLD, Security, PoE, Trunk, LACP, MLD, 802.1Q VLAN, Port-Based VLAN, MACBased VLAN, IP-Subnet-Based VLAN, Protocol-Based VLAN, QinQ, 802.1x, ARP spoof Prevention, DHCP snooping, IP source Guard, Dynamic ARP Inspection, Profinet, DHCP relay Agent, Voice VLAN, sFlow, PoE continue
Redundancy ITU-T G.8032 ERPS, STP, RSTP, MSTP, MRP(Manager/Client), Compatible Ring/Chain, U-Ring
Time Synchronization Network Synchronization NTP Server/Client, SNTP
Precision Network Synchronization IEEE1588v1 OC/BC (Software) IEEE1588v2 TC (Hardware) - ns accuracy IEEE1588v2 OC/BC (Software)
Automation Profiles Profinet v2.33 CC-B certified Modbus/TCP device status registers provided
SNMP MIB MIB II, IF-MIB, SNMPv2 MIB, BRIDGE-MIB, RMON MIB Group 1,2,3,9, RFC RFC 1157, RFC 1213, RFC 1215, RFC 1493, RFC 1643, RFC 1757, RFC 2011, RFC 2012, RFC 2013, RFC 2233, RFC 2571, RFC 2742, RFC 2819, RFC 2863, RFC 3411, RFC 3412, RFC 3413, RFC 3414, RFC 3415
Power Value
Input Voltage 9-57 VDC for Non-PoE models 45-57 VDC for 802.3af mode 51-57 VDC for 802.3at mode
Input Current (System) Max. 1.4A @ 9VDC (without PoE) Max. 3.1A @ 45VDC (Support up to 8 ports at 15.4W per PoE port) Max. 5.1A @ 51VDC (Support up to 8 ports at 30W per PoE port)
Power Consumption (System) Max 12.6 W @9 VDC (without PoE) Max 139.5 W @45VDC (802.3af, with 15.4W PoE per port for 8 ports) Max 260 W @51VDC (802.3at, with 30W PoE per port for 8 ports)
Connector 5-Pin 5.08mm Lockable Terminal Block
Reverse Polarity Protection Yes
Interfaces Value
RJ45 Ports Up to 8 10/100/1000BASE-T(X) auto negotiation speed
Fiber Optics Ports Up to 4 1000BASE-X SFP slot
LED Indicators PWR1, PWR2, Alarm, Run, Ring, Ring Master, RJ-45 Link/Speed, SFP Link, PoE
Console RS232 (RJ45 connector)
Relay Output 2 relay outputs with current carrying capacity of 1A @ 24 VDC
DIP Switches Ring Control and Profinet Setting
Button Reset Button
Physical Characteristics Value
Housing IP30 aluminum housing
Dimension (W x H x D) 54 x 113 x 145 mm
Weight 800g
Installation DIN-Rail , Wall mount (optional kit)
Environmental Limits Value
Operating Temperature -20°C~70°C (-4°F~158°F)
Storage Temperature -40°C~85°C (-40°F~185°F)
Ambient Relative Humidity 5% to 95% (Non-condensing test @55°C)
Certification Standard
Safety UL 60950-1 2nd Ed. /CSA C22.2 No.60950-1-07 2nd Ed. / CB (IEC/EN62368-1 & IEC/EN60950-1)
EMC FCC Part 15, Subpart B, Class A EN 55032, EN 55024, EN 61000-3-2, EN 61000-3-3, EN 61000-6-2, EN 61000-6-4,
Traffic Control NEMA TS-2
Rail Traffic EN50155 / EN50121-4
RoHS 2 Yes
REACH Yes
Standard Item Test Value Level
IEC 61000-4-2 ESD Contact Discharge ±6kV 3
IEC 61000-4-2 ESD Air Discharge ±8kV 3
IEC 61000-4-3 RS 80-1000MHz 10 V/m 3
IEC 61000-4-3 RS 1.4-2.0GHz 3 V/m 3
IEC 61000-4-3 RS 2.0-2.7GHz 1.0 V/m 3
IEC 61000-4-4 EFT DC Power Port ±2.0KV 3
IEC 61000-4-4 EFT Signal Port ±1.0KV 3
IEC 61000-4-5 Surge DC Power Port (L-2-L) ±1.0KV 3
IEC 61000-4-5 Surge DC Power Port (L-2-E) ±2.0KV 3
IEC 61000-4-5 Surge Signal Port (L-2-E) ±2.0KV 3
IEC 61000-4-6 CS 0.15-80MHz 10 V rms 3
IEC 61000-4-8 PFMF Enclosure 30 V/m 4
IEC 61000-4-11 DIP AC Power Port - N/A
Certification Standard
Shock MIL-STD-810G Method 516.5
Drop MIL-STD-810F Method 516.5
Vibration MIL-STD-810F Method 514.5 C-1 & C-2
Warranty 5 Years
MTBF 16.89 Years

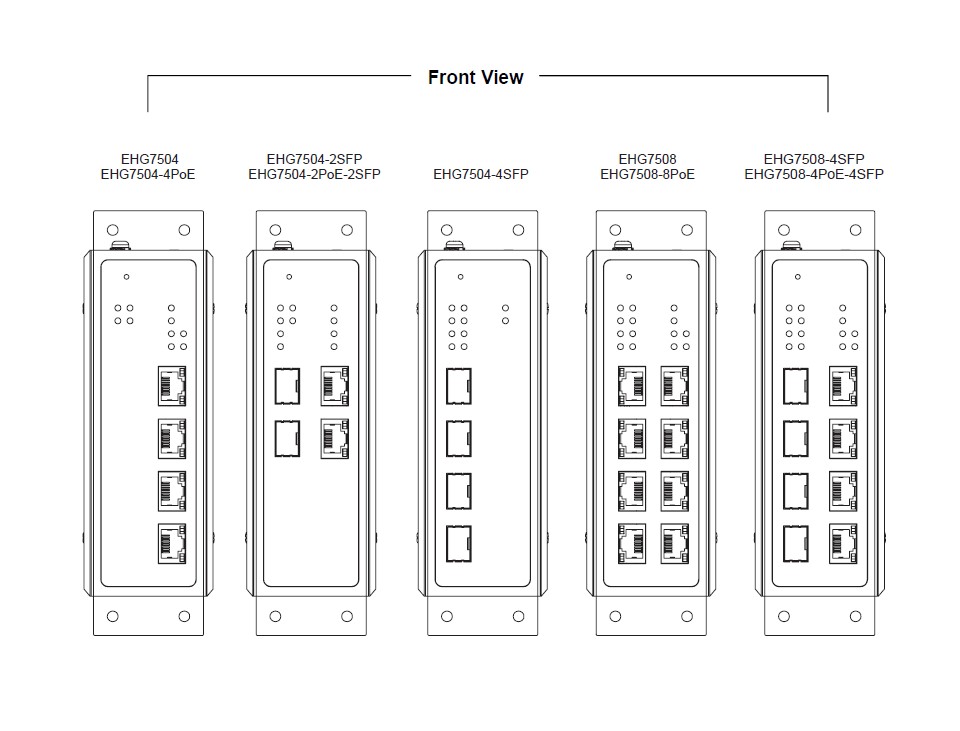

DIMENSIONS & LAYOUT

DIMENSIONS & LAYOUT
DIMENSIONS & LAYOUT
DIMENSIONS & LAYOUT
DIMENSIONS & LAYOUT
MODEL NAME PART NUMBER RJ45 (non-PoE) RJ45 (PoE) SFP
EHG7508 1P1EHG75080002G 8 0 0
EHG7508-8PoE 1P1EHG75080003G 0 8 0

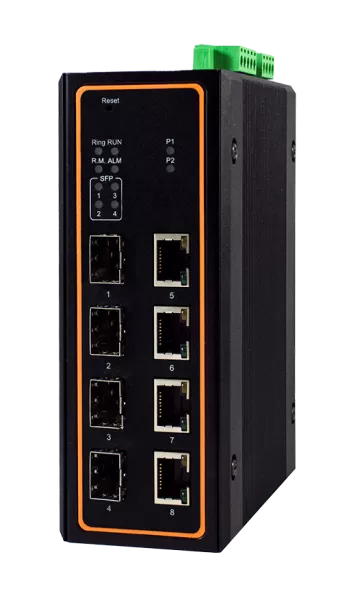

EHG7508-4SFP 1P1EHG75080004G 4 0 4
EHG7508-4PoE-4SFP 1P1EHG75080001G 0 4 4
MODEL NAME PART NUMBER DESCRIPTION
WMK-450-Black 70100000000052G Aluminum wall mount kit
CBL-RJ45(8P)-DB9(F)-90-C 50891971G RJ45 to DB9 Female Cross Over Console Cable, 90cm
SDR-75-24 50500752240001G 75W/3.2A DIN-Rail 24VDC power supply 88~264VAC / 124~370VDC input
SDR-240-48 50502401480001G 240W/5A DIN-Rail 48VDC power supply 88~264VAC / 124~370VDC input
AXGD-5854-0513 522AXGD5854001G SFP Transceiver, 1250Mbps, 850nm, Multi-mode, 550m, 3.3V, -40~85°C, DDMI
AXGD-1354-0523 522AXGD1354001G SFP Transceiver, 1250Mbps, 1310nm, Multi-mode, 2km, 3.3V, -40~85°C, DDMI
AXGD-1354-0533 522AXGD1354011G SFP Transceiver, 1250Mbps, 1310nm, Single-mode, 10km, 3.3V, -40~85°C,DDMI
AXGD-3354-0593 522AXGD3354001G SFP Transceiver, 1250Mbps, 1310nm, Single-mode, 40km, 3.3V,-40~85°C,DDMI
