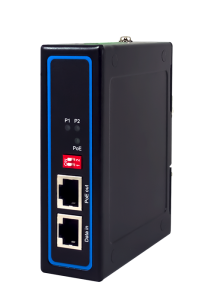

IJG7001 PoE Injector

Atop

January 2, 2020


Feature Highlights

  • Supports 802.3af (PoE), 802.3at (PoE+)
  • Up to 30W PoE power available
  • Redundant 12~57VDC Power input
  • Supports Mode A and Mode B, DIP-Switch Selectable
  • 2x 10/100/1000 BASE-T(X) ports (data in, data + PoE out)
  • IP30 aluminum with DIP-Rail / Wall mount (optional)
  • Operating range of -40°C to 75°C
  • EN 62368-1 and UL/IEC 62368-1 certified
  • Strong EMC Protection, up to Level 4



Multi-Protocol Support
This PoE Injector allows you to provide PoE Power to virtually any
device. Besides legacy IEEE 802.3af (PoE) and IEEE 802.3at (PoE+) standards.

Mode A and Mode B selection
IJG7001 supports for 802.3af/at both Mode A and Mode B, allowing
you through a simple DIP-Switch setting, to determine which pins
to use to transfer the power and be flexible in adapting this device
in virtually any requirement without the hassle of different part numbers.

Flexible power input
Equipped with a 12~57VDC wide-range redundant power input
combined with a strong EMC protection, IJG7001 can be flexibly
installed on machine-side, reducing the overall cost of ownership
resulting in not needing an external, expensive, power supply.

Power

PoE Voltage Booster: Yes (Max support 30W)
Input Voltage: 12~57 VDC (power limitations)
Input Current: Max 3.6A @12VDC
Max. Power Consumption: 30W

IJG7001
