SE5001 Series

This product has been discontinued. Please refer to SE5201C-DB as the replacement. For detailed support, please refer to the notice or contact our product expert or your local agent.

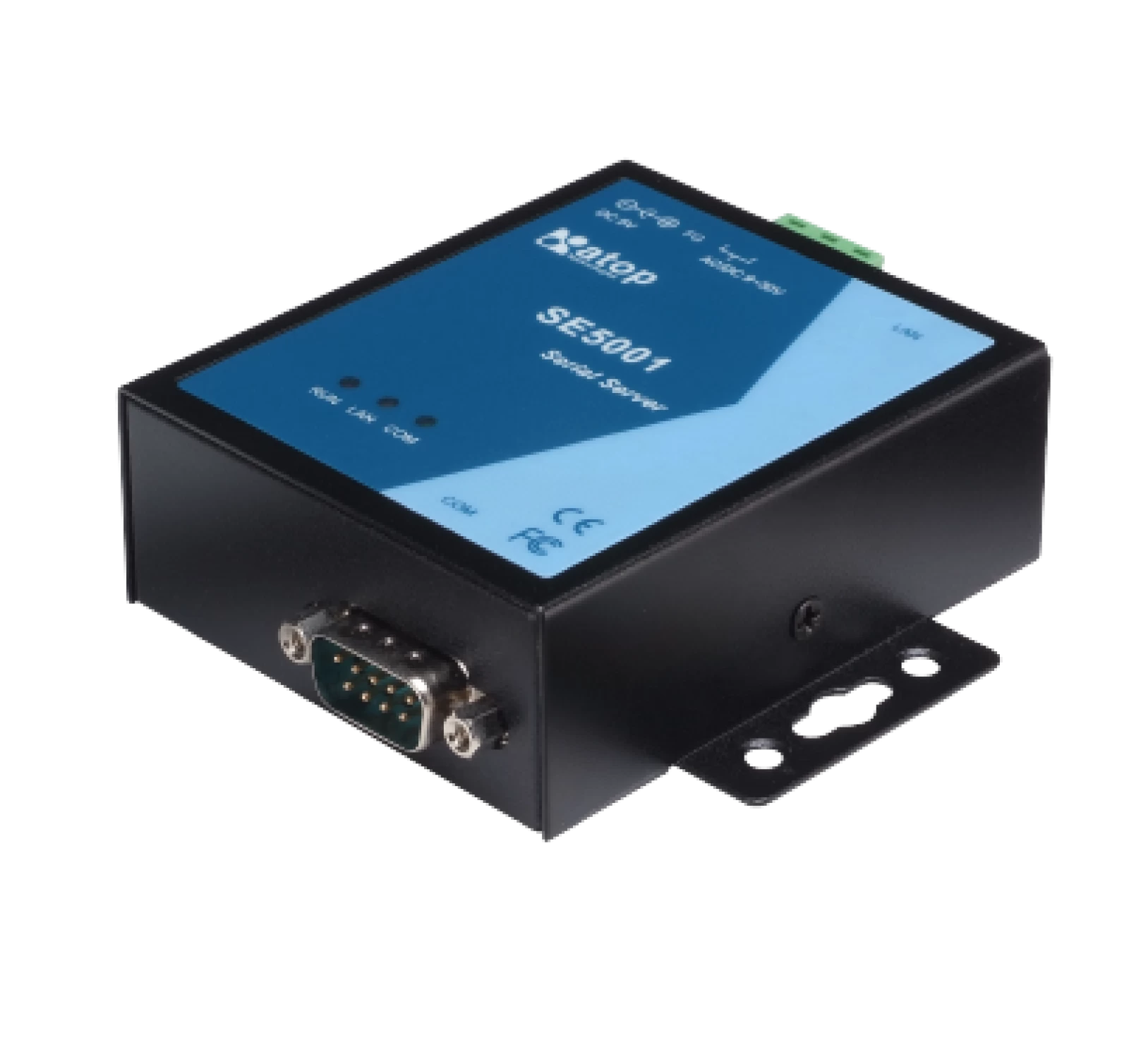

  1-Port Serial Device Server supporting RS-232, RS-422 and RS-485 Compact size Rugged metal case with wall or DIN-Rail mount 10/100Mbps Fast Ethernet full duplex auto negotiation Support TCP server/client, UDP, Virtual COM and Tunneling modes Monitor, manage, and control industrial field devices remotely Configuration: Web Server page / Serial Console / Telnet Console / Windows Utility Upgrade firmware from a remote-PC via Ethernet Redundant dual DC power inputs for non-stop operation *** This series has been replaced by SE5201C Series. In case of you need an extending life time support, please contact your local agent.

Make Serial Devices Ready to the Network The Industrial Serial Server SE5001 is a cost effective gateway for Ethernet (TCP/IP) and serial signal communications. It allows almost any serial device to be connected to a new or existing Ethernet network. By encapsulating serial data and transporting it over Ethernet, SE5001 offers full-duplex and bi-directional data that is transmission transparent between the serial port and the Ethernet network. Easy to Use Flexible configuration options enable this unit to be setup over Ethernet by Telnet, Web browser, Serial Console, or other Windows utilities. Packed in a rugged metal housing for wall or DIN-Rail  mount with 5~30VDC wide power input range, SE5001 is ideal for almost any industrial and manufacturing automation. ATOP Virtual COM software provides existing Windows based application to access serial device by mapping the Virtual COM port to a remote serial server via Ethernet. Specially Designed for Automation Fields In industrial and manufacturing automation fields, SE5001 is used as a field device to connect the Ethernet through TCP/IP protocol directly. It is also specially designed for conjunction with PLCs, HMIs, Barcode Scanners, Data Terminals, Electronic Kanbans, Shop Floor Control Systems, and Pick-to-Light Systems.
Network Interface
Speed IEEE 802.3 10BaseT IEEE 802.3u 100BaseT(X)
Auto-negotiation Present
Auto MDI/MDI-X Present
Connector ports RJ45 x 1
Serial Interface
Connector D-Sub9
Mode RS-232/422/485 Software selectable
Ports 1
Baud Rate 1,200bps ~ 230kbps software selectable
Data Bits 7, 8 software selectable
Stop Bits 1, 2 software selectable
Flow Control None, Xon/Xoff, RTS/CTS
Software
Protocols IPv4, ICMP, TCP, UDP, DHCP Client, SNMP, HTTP, Telnet
Configuration Atop Management Utility, Web UI, Telnet
VirtualCOM Windows/Linux redirection software
Link Modes - TCP Client Single destination or VirtualCOM
Link Modes - TCP Server 4 Connections; VirtualCOM or reverse Telnet
Link Modes - UDP Up to 4 Ranges IP
Power Value
Input Voltage DC 5V and 9-30V
Power Consumption Approximately 1.50 W (Max)
Power Redundancy Yes
Connector 3-Pin 5.08mm Lockable Terminal Block and DC Jack (5VDC)
Reverse Polarity Protection Yes
Physical Characteristics Value
Dimension (W x H x D) 65mm x 78mm x 28mm
Weight 180g
Installation Wall mount, DIN-Rail (optional)
Reset Button Yes
Environmental Limits
Operating Temperature 0°C ~ 60°C ( 32º ~ 140ºF )
Storage Temperature -40°C~85°C (-40°F~185°F)
Ambient Relative Humidity 5%~95%, 55°C (Non-condensing)
Approvals
Safety CE LVD EN62368-1:2014/A11:2017
EMC CE EMC EN55032:2012+AC:2013 , Class A CE EMC EN55024:2010 FCC Part 15B , Class A
Test Item Value Level
IEC 61000-4-2 ESD Contact Discharge Air Discharge ±4KV ±8KV 2 3
IEC 61000-4-3 RS Radiated(Enclosure) 3 V/m 2
IEC 61000-4-4 EFT DC Power Port Signal Port ±1.0KV ±0.5kV 2 2
IEC 61000-4-5 Surge DC Power Port Line to Line ±1.0kV 3
IEC 61000-4-6 CS 0.15-80MHz 3 Vr.m.s 2
IEC 61000-4-8 PFMF Enclosure 1 A/m 1
IEC 61000-4-11 DIP AC Power Port - -
Certification Standard
Shock IEC 60068-2-27
Drop IEC 60068-2-32
Vibration IEC 60068-2-64
Protection IEC/EN60529 - IP30
RoHS Yes
MTBF 55.46 Years (MIL-HDBK-217F)
Warranty 5 Years
MODEL NAME PART NUMBER DESCRIPTION
SE5001 1P1SE500100003 1-port RS-232/422/485(D-Sub) serial server without adapter
MODEL NAME PART NUMBER DESCRIPTION
UN315-1212 (US-Y) 50500151120003G Y-Type power adapter, 100~240VAC input, 1.25A @ 12VDC output, US plug, LV6
UNE315-1212 (EU-Y) 50500151120013G Y-Type power adapter, 100~240VAC input, 1.25A @ 12VDC output, EU plug, LV6
UV305-0510(US-DC) 50500051500003G DC jack (3.5/1.35/7.5 mm) power adapter, 100~240VAC input, 1.0A @ 5 VDC output, US plug, LV6
UVE305-0510 (EU-DC) 50500051500013G DC jack (3.5/1.35/7.5 mm) power adapter, 100~240VAC input, 1.0A @ 5 VDC output, EU plug, LV6
UVE305-0510(UK-DC) 50500051500023G DC jack (3.5/1.35/7.5 mm) power adapter, 100~240VAC input, 1.0A @ 5 VDC output, UK plug, LV6
ADP-DB9(F)-TB5 59906231G Female DB9 to Female 3.81mm TB5 Converter
DK-25 30200000000022G Plastic DIN Rail Kit

Datasheet

VERSION NAME TIME SIZE DOWNLOAD
v4.1 Datasheet EN 2020-09-26 196.59 KB
1 older version

Manual

VERSION NAME TIME SIZE DOWNLOAD
v1.7 SE5001 User Manual 2017-04-27 2.69 MB

Quick Start Guide

VERSION NAME TIME SIZE DOWNLOAD
v1.7 SE5001-SE5001A Quick Start Guide 2017-10-02 208.40 KB

Firmware

VERSION NAME TIME SIZE DOWNLOAD
v3.609 SE5001 Firmware v3.609 2017-04-21 185.35 KB

Utility

VERSION NAME TIME SIZE DOWNLOAD
v5.60 Management Utility for Windows 2021-01-18 23.65 MB
1 older version

Test reports

VERSION NAME TIME SIZE DOWNLOAD
SE5001 Declarations of Conformity 2023-03-10 421.02 KB
v1.0 SE5001_MB5001C_CE_FCC 2020-09-23 1.92 MB
v1.0 SE5001_MB5001C_LVD 2020-09-23 4.04 MB
