EH2305

Industrial 5-Port Unmanaged Fast-Ethernet Switch with optical fiber, DIN-Rail mount, Metal housing

Technology

  • 10/100BaseT(X) (RJ45), 100BaseFX (SC/ST connector)
  • Broadcast storm protection
  • Support IEEE 802.3/ 802.3u/ 802.3x
  • 10/100M, Full/Half-Duplex, MDI/MDI-X auto-detection

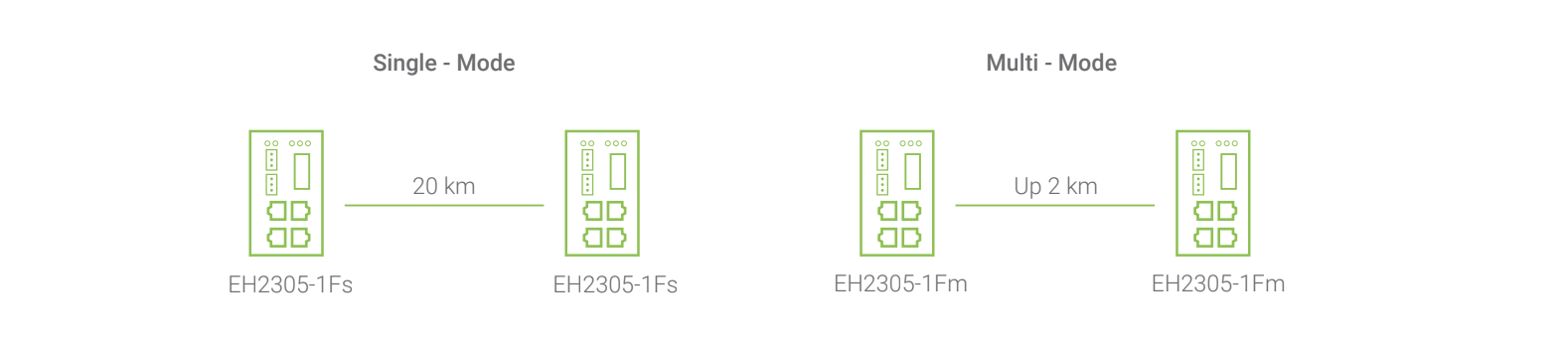

  • Local area transmit distance of 2 Km with Multi-mode Fiber connections
  • Long-haul transmit distance of 20 Km with Single-mode Fiber connections

Reliability

  • Redundant dual DC power inputs
  • Operating temperature ranges from -10~70°C
  • Rugged high-strength housing
  • DIN-Rail or wall mounting ability
EH2305

The EH2305-1Fm/1Fs has a metal housing with 4 RJ-45 ports and one optical ST/SC port, it’s designed to work in the industrial environment, such as in hazardous locations, where it complies with CE, FCC, UL and RoHS standards.

The EH2305 series protects itself from receiving too many broadcast packets. During normal use, broadcast packets will be forwarded to all ports except the source port. However, it will discard broadcast or multicast packets if the number of those packets exceeds a threshold in a preset period of time. When the preset period expires (about 800ms), it will then resume receiving broadcast or multicast packets until the threshold is reached again.

The EH2305 series provides two redundant power inputs that can be connected simultaneously to wide-range DC power sources. If one of the power inputs failure, the other live source acts as a backup to provide EH2305 series the power it needs automatically.

Environmental LimitsValue
Operating-10°C to +70°C ( +14oF to +158oF )
Storage-40oC to +85oC ( -40oF to +185oF )
Ambient Relative Humidity5%-95% non-condensing
Physical CharacteristicsValue
HousingIP30 protection; aluminum housing
Dimension (W x H x D)45.2 x 90 x 78 mm
Weight255g
InstallationDIN-Rail , Wall mount (optional kit)
Reset ButtonNo
Warranty5 years
Power
Input VoltageDC 9 ~ 30V
ConnectorDual 3-pin 5.08mm pitch Terminal block
Power Consumption5.4 Watts Max
Input Current0.60A
Reverse Polarity ProtectionYes
Redundancy Yes
Fiber Optic
SpeedFast Ethernet 100 Base FX
ModeMulti-modeSingle-mode
ConnectorST (EH2005-Fm)
SC (EH2005-Fs)
Fiber Distance2 Km (Max)20 Km (Max)
Cable Requirements62.5/125 um9/125 um
Fiber Wavelength1270(Min)~1360(Max) nm1263(Min)~1360(Max) nm
Max. TX Power-14 dBm-8 dBm
Min. TX Power-19 dBm-15 dBm
RX Sensitivity-34 dBm(Typical)
-32 dBm(Max)		-32 dBm(Max)
Ethernet
Transmission Rate10/100Mbps
Ports5
10/100Mbps5
ConnectorRJ-45 x 4 + Fs/Fm x 1
Auto MDI/MDI-XYes
CertificationStandard
SafetyUL 60950-1 /CSA C22.2 No.60950-1-03 / LVD EN62368-1
EMCFCC Part 15, Subpart B, Class A
EN 55032, EN 55024, EN 61000-3-2, EN 61000-3-3, EN61000-6-2 , EN61000-6-4

drawing

1
2
3
MODEL NAME PART NUMBERDescription
UN315-1212 (US-Y)50500151120003GY-Type power adaptor, 100-240VAC input, 1.25A @ 12VDC output, US plug, LV6
UNE315-1212 (EU-Y)50500151120013GY-Type power adaptor, 100-240VAC input, 1.25A @ 12VDC output, EU plug, LV6
MODEL NAME PART NUMBER
EH2305-1Fm1P1EH23051FM01GIndustrial 5-port Unmanaged Fast Ethernet Switch
with 4x 10/100TX & 1x 10/100FX Multi-mode
EH2305-1Fs1P1EH23051FS01GIndustrial 5-port Unmanaged Fast Ethernet Switch
with 4x 10/100TX & 1x 10/100FX Single-mode

Datasheet

Version Name Time Size Download
v6.4 Datasheet EN 2024-03-01 343.67 KB
More versions
v6.2 Datasheet EN 2020-11-25 307.41 KB
v6.3 Datasheet EN 2023-09-30 184.74 KB

Hardware Installation Guide

Version Name Time Size Download
v1.0 EH200X - EHG200X - EH23XX - EHG23XX Hardware Installation Guide 2018-09-21 3.9 MB

STP/DXF drawings

Version Name Time Size Download
v1.0 EH2305-Fm STP File 2022-07-06 2.03 MB

Test reports

Version Name Time Size Download
EH2305 Declarations of Conformity 2023-03-16 287.13 KB
v1.0 EH2305 compliance certificate EN 62368-1 2020-11-26 330.8 KB
v1.0 EH2305 test report certification EN 62368-1 2020-11-26 5.98 MB
