EF24 Series

This product has been discontinued. Please refer to EF24L as the replacement. For detailed support, please refer to the notice or contact our product expert or your local agent.

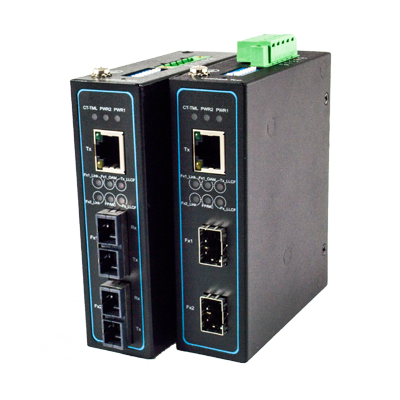

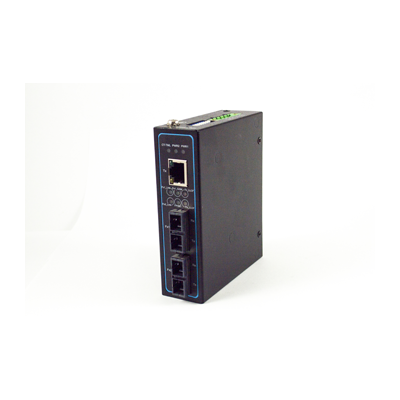

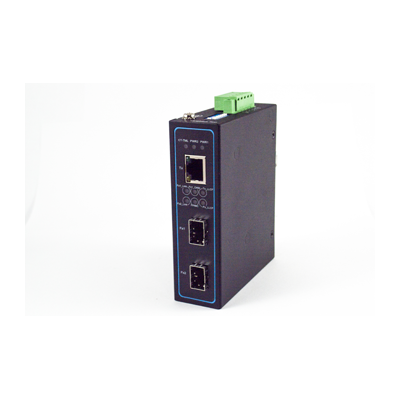

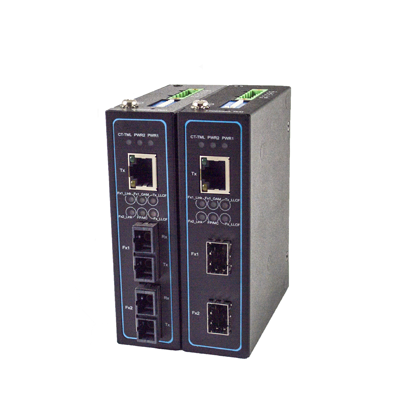

Industrial Gigabit Ethernet to Fiber Smart Media Converter with 1 or 2 fiber ports, DIN-Rail mount, Metal housing

  • Cut-Through Forwarding Mode
  • Available in both SC and SFP Fiber Connectors
  • Redundant Power Input
  • Jumbo packets up to 9K bytes
  • Link Fault Pass-Through (LFP) and Link Loss Carry Forward
  • 2-Fiber device works in Media Converter Mode or Fiber Repeater Mode
  • Operating Temperature : -10°C ~ 70°C
Discontinued
EF24 Series
EF24 Series
EF24 Series
EF24 Series
EF24 Series

EF24 Series provides seamless media conversion from 10/100/1000BASE-T(X) RJ45 to Fiber (available in both SC and SFP fiber connectors). Available in with one or two Fiber ports, its 2-port version provides additional Fiber Repeater Feature, or media extension in 100/1000 BASE-(F)X.

EF24 Series comes with a DIP switch to configure or enable the more advanced functions including the fiber speed, fiber auto negotiation, link fail pass-through, terminal/center device, power saving, jumbo frame, and cut- through forwarding to reach the maximum flexibility.

Network Interface
SpeedIEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X), 100BaseFX
RJ45 ports1x 10/100BaseT(X)
Fiber Ports1x 100BaseFX (SC connector)
LED IndicatorsPWR,SPD,TX_LINK/ACT,TX_FDX/COL,FX_LINK/ACT,FX_FDX/COL
DIP SwitchTX Duplex mode, FX Duplex mode, Speed mode, LFP, Auto Negotiation
PowerValue
Input Voltage9~48 VDC
Input Current (@ 6VDC)0.3A max, 9 VDC
Power ConsumptionApproximately 3 W (Max)
ConnectorRemovable 5-pin Terminal Block
Power RedundancyYes
Reverse Polarity ProtectionYes
Physical CharacteristicsValue
HousingIP30 SPCC housing
Dimension (W x H x D)32 mm x 90 mm x 110 mm (1.26 x 3.54 x 4.33 in)
WeightEF24-1G-1Fm-SC-550M / EF24-1G-1Fs-SC-10 : 320g
EF24-1G-1SFP : 330g
EF24-1G-2Fm-SC-550M / EF24-1G-2Fs-SC-10 : 330g
EF24-1G-2SFP : 340g
InstallationDIN-Rail , Wall mount (optional kit)
Environmental Limits
Operating Temperature-10°C ~ 70°C (14°F ~ 158°F)
Storage Temperature-40°C~85°C (-40°F~185°F)
Ambient Relative Humidity5%~95%, 55°C (Non-condensing)
CertificationStandard
SafetyCB (IEC62368-1/EN62368-1)
EMCFCC Part 15, Subpart B, Class A
EN55032
EN61000-6-4
EN 61000-3-2
EN 61000-3-3
EN 55024
EN 61000-6-2
StandardItemTestValueLevel
IEC 61000-4-2ESDContact Discharge±6kV3
IEC 61000-4-2ESDAir Discharge±8kV3
IEC 61000-4-3RS80-1000MHz10 V/m3
IEC 61000-4-4EFTAC Power Port±2.0kV3
IEC 61000-4-4EFTDC Power Port±2.0kV3
IEC 61000-4-4EFTSignal Port±1.0KV3
IEC 61000-4-5SurgeAC Power PortLine-to Line±1.0KV3
IEC 61000-4-5SurgeAC Power PortLine-to Earth±2.0KV3
IEC 61000-4-5SurgeDC Power PortLine-to Line±1.0KV3
IEC 61000-4-5SurgeSignal PortLine-to Earth±1.0KV2
IEC 61000-4-6CSConducted (enclosure)10 V rms3
IEC 61000-4-8PFMFEnclosureAC 50/60 Hz 10 A/m4
IEC 61000-4-11DIPAC Power Port--
CertificationStandard
ShockMIL-STD-810F Method 516.5
DropMIL-STD-810F Method 516.5
VibrationMIL-STD-810F Method 514.5 C-1 & C-2
RoHSYes
MTBF415,681.88 hrs / 47.45 years (25°C)
Warranty5 Years
MODEL NAME PART NUMBERDESCRIPTION
EF24-1G-1Fm-SC-550M1P1EF24G1FMSC1GIndustrial Gigabit Ethernet-to-Fiber Media Converter, multimode, SC connector, Link Fault Pass-Through, Auto Speed, 550 M
EF24-1G-1Fs-SC-101P1EF24G1FSSC1GIndustrial Gigabit Ethernet-to-Fiber Media Converter, single-mode, SC connector, Link Fault Pass-Through, Auto Speed, 10 KM
EF24-1G-1SFP1P1EF24G1SFP01GIndustrial Gigabit Fast Ethernet-to-Fiber Media Converter, Link Fault Pass-Through, Auto Speed, SFP
EF24-1G-2Fm-SC-550M1P1EF24G2FMSC1GIndustrial Gigabit Ethernet-to-Fiber Media Converter and Repeater, multimode, SC connector, Link Fault Pass-Through, Auto Speed, 550 M
EF24-1G-2Fs-SC-101P1EF24G2FSSC1GIndustrial Gigabit Ethernet-to-Fiber Media Converter and Repeater, single-mode, SC connector, Link Fault Pass-Through, Auto Speed, 10 KM
EF24-1G-2SFP1P1EF24G2SFP01GIndustrial Gigabit Fast Ethernet-to-Fiber Media Converter and Repeater, Link Fault Pass-Through, Auto Speed, SFP
MODEL NAME PART NUMBERDESCRIPTION
UN315-1212 (US-Y)50500151120003GY-Type power adaptor, 100~240VAC input, 1.25A @ 12VDC output, US plug, LV6
UNE315-1212 (EU-Y)50500151120013GY-Type power adaptor, 100~240VAC input, 1.25A @ 12VDC output, EU plug, LV6
LM28-C3S-TI-N50708031GSFP Transceiver, 1250Mbps, 850nmVCSEL, Multi-mode, 550m, 3.3V, -20~85C
LM38-C3S-TI-N50709411GSFP Transceiver, 1250Mbps, 1310nmFP, Multi-mode, 2km, 3.3V, -40~85C
LS38-C3S-TI-N50709391GSFP Transceiver, 1250Mbps, 1310nmFP, Single-mode, 10km, 3.3V, -40~85C
LS38-C3L-TI-N50709441GSFP Transceiver, 1250Mbps, 1310nmDFB, Single-mode, 30km, 3.3V, -40~85C
LM38-A3S-TI-N50708051GSFP Transceiver, 155Mbps, 1310nmLED, Multi-mode, 2km, 3.3V, -40~85C
LS38-A3S-TI-N50709431GSFP Transceiver, 155Mbps, 1310nmFP, Single-mode, 30km, 3.3V, -40~85C
WMK-315-Black-Aluminum Wall Mount Kit, Black
