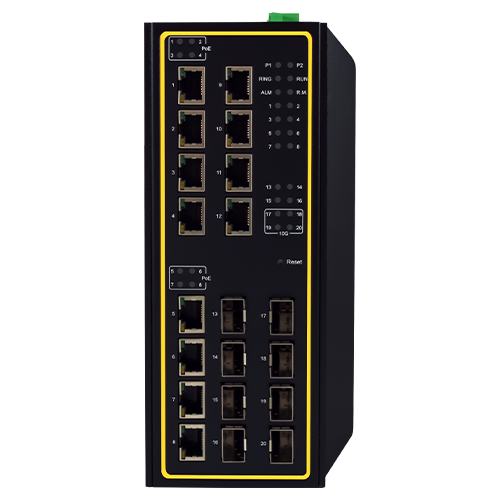

EHG7620 Series

20-Port High-Bandwidth Industrial Managed Layer-3 Gigabit PoE Switch

  • Up to 16 10/100/1000 RJ45 ports or 100/1000 BASE-X SFP slots. Plus 4 dedicated 1/10G Uplink SFP slots
  • Up to 8x 802.3af/ 802.3at PoE/PoE+ Power over Ethernet ports, with
    maximum 30W PoE power per port and up to 240W power budget.
  • Powerful Layer-3 Switching, supporting IPv4 Static, RIPv1/v2 and OSPFv2
  • Redundancy through ITU-T G.8032 ERPS Ring, RSTP, STP, MRP (Manager/ Client), compatible rings and compatible chains.
  • UL 62368-1:2014, CE/FCC, NEMA TS-2 certified for traffic control
  • Wide temperature operations, from -40°C to 70°C
  • IEEE 1588v2 Precision Time Protocol Hardware-Based End-to-End TC
New
EHG7620 Series
EHG7620 Series
EHG7620 Series

Designed to be adaptive, with unprecedented throughput: Atop’s EHG7620 Series offers several different versions making it a very flexible product based on your specific needs for Layer-3 Switching. No matter the version, this device offers 4 x 1/10 Gigabit Ethernet SFP uplinks making it a cost-effective, reliable industrial solution where high-throughput and high-reliability
is fundamental.

Layer-3 routing support IPv4 static routing, RIP v1/v2 and OSPFv2.

Designed for PoE, in wide temperature: EHG7620 supports up to 20 Gigabit ports in different configurations, either Copper, PoE or Fiber, any 8-port multiple configuration. Specifically designed for bringing power through Ethernet cable virtually anywhere, a maximum output Power over Ethernet of 240W over a maximum of 8 PoE/PoE+ ports is allowed (802.3af/at).

Rugged, Wide-Temperature, Well protected design: EHG7620 is EN61000-6-2, EN61000-6-4, IEC/EN/UL62368-1:2014 and FCC
certified certified and is designed to withstand the harshest environments and the most demanding EMC environment. Its fanless design and EMC Level 3 protection guarantee reliable operations within -40 and +70°C, guaranteeing no packet is lost with all ports running full power and makes it suitable to be used for almost every application.

Powerul and versatile: With its high performance, it provides network redundant self-recovery mechanism is less than 20ms on full load that enables the user to build a reliable network through almost any redundant ring topology. It supports ITU-T G.8032 ERPS Ring, IEEE802.1D-2004 RSTP, STP, MSTP, MRP (Manager/ Client), iA-Ring, iA-Chain and many compatible rings protocols for network redundancy. With a Multifunctional web dashboard, its offers intelligent features such as QoS, VLAN, IGMP, Port mirroring and security.

Application-Specific: NEMA TS-2 Certification makes EHG7620 family the perfect choice for Smart City and Traffic Control applications.

Switch PropertiesValue
Priority Queues8
VLAN Table4,096
MAC-Based VLAN512
VLAN ID RangeVID 1 to 4,094
Trunk Group4
Static IGMP Groups128
Dynamic IGMP Groups256
MAC Table Size16k
Packet Buffer Size1.5 MB
Jumbo Frame9216 Byte
EthernetStandard-
StandardsIEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X)
IEEE 802.3ab for 1000BaseT(X)
IEEE 802.3z for 1000BaseX
IEEE 802.3ae For 10 Gigabit Ethernet Fiber
IEEE 802.3x for Flow Control, back pressure flow control
IEEE 802.1D-2004 for Spanning Tree Protocol
IEEE 802.1w for Rapid Spanning Tree Protocol
IEEE 802.1s for Multiple Spanning Tree Protocol
IEEE 802.1Q for VLAN Tagging
IEEE 802.1p for Class of Service
IEEE 802.1X for Authentication
IEEE 802.3ad for Port Trunk with LACP
IEEE 802.3az for Energy Efficient Ethernet
ProtocolsIPv4, IPv6, IGMPv1/v2/v3, IGMP Snooping, GARP, GMRP, GVRP, SNMPv1/v2c/
v3, SNMP Inform, ICMP, Telnet, SSH, DHCP Server/Relay/Client, DHCP Option
66/67/82, BootP, RARP, TFTP, SMTP, SMTP (Gmail), RMON, HTTP, HTTPS,
Syslog, MRP (Manager/ Client), LLDP,802.1x,EAP,RADIUS,TACACS+,Mirror port, QoS, ACL
Layer-3 ProtocolsRouting: IPv4 Unicast static routing, RIP v1/v2, OSPFv2,
Multicast: IGMPv1/v2/v3, DVMRP, PIM-DM, PIM-SM, PIM-SSM
Routing Redundancy: VRRP (Virtual Router Redundancy Protocol)
RedundancyITU-T G.8032 ERPS Ring, STP, RSTP, MSTP, Compatible Ring/Chain, U-Ring
Time SynchronizationNetwork SynchronizationNTP Server/Client, SNTP
Precision Network
Synchronization
IEEE1588v1 OC/BC (Software)
IEEE1588v2 E2E TC (Hardware) - ns acc.
IEEE1588v2 OC/BC (Software)
Automation ProfilesModbus/TCP device status registers provided
SNMP MIBMIB II, IF-MIB, SNMPv2 MIB, BRIDGE-MIB, RMON MIB Group 1,2,3,9, RFC
RFC 1157, RFC 1213, RFC 1215, RFC 1493, RFC 1643, RFC 1757, RFC 2011,
RFC 2012, RFC 2013, RFC 2233, RFC 2571, RFC 2742, RFC 2819, RFC 2863,
RFC 3411, RFC 3412, RFC 3413, RFC 3414, RFC 3415, RFC 2674
PowerValue
Input Voltage9-57 VDC for Non-PoE models
45-57 VDC for 802.3af mode
51-57 VDC for 802.3at mode
Input Current (System)Max. 2.2A @ 9 VDC (without PoE)
Max. 3.3 A @ 45 VDC (Support up to 8 ports at 15.4 W per PoE port)
Max. 5.2 A @ 51 VDC (Support up to 8 ports at 30 W per PoE port)
Power Consumption (System)Max. 19.8 W @ 9 VDC (without PoE)
Max. 148.5 W @ 45 VDC (Support up to 8 ports at 15.4 W per PoE port)
Max. 265.2 W @ 51 VDC (Support up to 8 ports at 30 W per PoE port)
Connector5-Pin 5.08mm Lockable Terminal Block
Reverse Polarity ProtectionYes
InterfacesValue
RJ45 PortsUp to 16 10/100/1000BASE-T(X) auto negotiation speed
Fiber Optics PortsUp to 16 100/1000BASE-X SFP slot plus 4 1000BASE-X or 4 10G SFP slots
LED IndicatorsPWR1, PWR2, Alarm, Run, Ring, Ring Master, RJ-45 Link/Speed, SFP Link, PoE
ConsoleRS232 (RJ45 connector)
Relay Output2 relay outputs with current carrying capacity of 1A @ 24 VDC
DIP SwitchesRing Control and Profinet Setting
ButtonReset Button
Physical CharacteristicsValue
HousingIP30 SPCC Metal housing, ruggedized Heat-sink
Dimension (W x H x D)EHG7516-EHG7520 / EHG7616-EHG7620: 95 x 200 x 160 mm
Weight2,500 g
InstallationDIN-Rail, Wall mount (optional kit)
Environmental LimitsValue
Operating Temperature-20°C~70°C (-4°F~158°F)
Storage Temperature-40°C~85°C (-40°F~185°F)
Ambient Relative Humidity5% to 95% (Non-condensing test @55°C)
CertificationStandard
SafetyUL62368-1, 2nd Ed., CSAC22.2 N. 62368-1-14,NZS62368.1:2018,EN62368-1:2014+A11:2017
Traffic ControlNEMA TS-2
EMCFCC Part 15, Subpart B, Class A
EN 55032, EN 55024, EN 61000-3-2, EN 61000-3-3, EN 61000-6-2, EN 61000-6-4
RoHS 2Yes
StandardItemTestValueLevel
IEC 61000-4-2ESDContact Discharge
Air Discharge
±6KV
±8KV
3
3
IEC 61000-4-3RS80-1000MHz
1.4-2.0GHz
2.0-2.7GHz
10(V/m)
3(V/m)
10(V/m)
3
3
3
IEC 61000-4-4EFTAC Power Port
DC Power Port
Signal Port
±2.0kV
±2.0kV
±1.0kV
3
3
3
IEC 61000-4-5SurgeDC Power Port
DC Power Port
Signal Port
Line-to Line±1.0kV
Line-to Earth±2.0kV
Line-to Earth±2.0kV
3
3
3
IEC 61000-4-6CS0.15-80MHz10V rms3
IEC 61000-4-8PFMFEnclosure30 V/m4
IEC 61000-4-11 DIPAC Power Port-A
CertificationStandard
ShockMIL-STD-810G Method 516.5
DropMIL-STD-810F Method 516.5
VibrationMIL-STD-810F Method 514.5 C-1 & C-2
Warranty5 Years
MTBF16.89 Years
MODEL NAME PART NUMBERRJ45Port
1G
RJ45Port
PoE 1G
SFP Port
1G
SFP Port
10G
EHG7620-410GSFP1P1EHG76200001G16004
EHG7620-4PoE-410GSFP1P1EHG76200002G12404
EHG7620-8PoE-410GSFP1P1EHG76200003G8804
EHG7620-4SFP-410GSFP1P1EHG76200004G12044
EHG7620-4PoE-4SFP-410GSFP1P1EHG76200005G8444
EHG7620-8PoE-4SFP-410GSFP1P1EHG76200006G4844
EHG7620-8SFP-410GSFP1P1EHG76200007G8084
EHG7620-12SFP-410GSFP1P1EHG76200008G40124
EHG7620-4PoE-12SFP-410GSFP1P1EHG76200009G04124
EHG7620-16SFP-410GSFP1P1EHG7620000AG00164
MODEL NAME PART NUMBERDESCRIPTION
WMK-450-Black70100000000052GAluminum wall mount kit
CBL-RJ45(8P)-DB9(F)-90-C50891971GRJ45 to DB9 Female Cross Over Console Cable, 90cm
SDR-75-2450500752240001G75W/3.2A DIN-Rail 24VDC power supply 88~264VAC / 124~370VDC input
SDR-240-4850502401480001G240W/5A DIN-Rail 48~55VDC power supply 88~264VAC / 124~370VDC input
SDR-480-4850504801480001G480W/10A DINRail 48~55VDC power supply 88~264VAC /124~370VDC input
AXFD-1314-0523522AXFD1314001GSFP Transceiver;155Mbps, Multi-mode;1310nm;2km;-40~85, DDMI
AXFD-1314-0553522AXFD1314011GSFP Transceiver;155Mbps, Single-mode;1310nm;30km;-40~85, DDMI
AXGD-5854-0513522AXGD5854001GSFP Transceiver, 1250Mbps, 850nm, Multi-mode, 550m, 3.3V, -40~85°C, DDMI
AXGD-1354-0523522AXGD1354001GSFP Transceiver, 1250Mbps, 1310nm, Multi-mode, 2km, 3.3V, -40~85°C, DDM
AXGD-1354-0533522AXGD1354011GSFP Transceiver, 1250Mbps, 1310nm, Single-mode, 10km, 3.3V, 40~85°C,DDMI
AXGD-3354-0593522AXGD3354001GSFP Transceiver, 1250Mbps, 1310nm, Single-mode, 40km, 3.3V, 40~85°C,DDMI
AXXE-5886-05B3522AXXE5886001GSFP Transceiver, 10Gbps, SFP Transceiver,10Gbps Multi;850nm;300m;-40~85°C
