CR5201B

Low Power Consumption Gateway LTE Cat-1

  • Comprehensive Connectivity
    - LTE Cat 1
    - 2x 100 Base TX RJ 45, 2x LAN
    - 1 DI & 1 DO I/O Interface
  • Reliable & Trustworthy Platform
    - Multi WAN Failover
    - Secure VPN and Firewall Isolation
    - IEC62443-4-2 Cybersecurity Compliance*
  • Quick Deployment & Management
    - ATOP NMS Management
  • Compact and Robust Design
    - Efficient Power Consumption (<100 mW)
    - Dimensions: 136 x 95 x 30 mm
    - Industrial EMC Protection
    - -30°C to +75°C Operation
  • Other Features
    - SD Slot for Configuration and Storage
    - Optional GPS Function
    - Schedulable Power Management
  • High Quality Guaranteed
    - Made in Taiwan with 5 Years Warranty
New

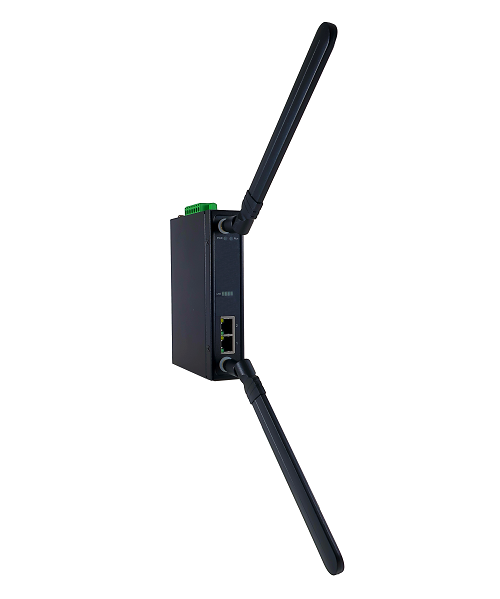

CR5201B

ATOP CR5201B IoT gateway is a super-low power consumption LTE gateway. In addition to high EMC protection, widetemperature operation, and rugged metal housing, CR5201B series has a configurable power management mechanism to reduce device power consumption. It is suitable for various operations, especially in power-challenged environments.




Efficient Power Consumption
CR5201B supports Cellular LTE Cat-1. With extended idle and sleep modes, these standards have lower power consumption than other LTE standards. CR5201B further enhances this efficiency by using less than 100 mW power in sleep mode, allowing easy deployment in power-challenged environments.




Expandable SD Storage
CR5201B reserves the flexibility to extend its storage capacity through a built-in SD slot, so you can store more data on the IoT gateway for work efficiency as well.




Exceptional Security
Integrating Firewall, Zone forwarding, and VPN functions, ATOP CR5201B allows you to connect your industrial network to the internet without fearing intrusions to your organization data.




Endurance of Harsh Environments
ATOP CR5201B is proven to run at its maximum loading in the harshest EMC and climate environments.



APPLICATION CASE




As a Low Power Consumption IoT Gateway
CR5201B can act as a low power consumption gateway. Through its smart power management mechanism, the device switches to sleep mode or hibernation mode during non-service phases, and can be woken via scheduled
management policies to serve functions when needed. It is especially suited where power supply is limiting, such as in systems powered by solar batteries.




As a Cyber Security Gateway
CR5201B is also designed to act as a cyber security gateway. Un-secured network access will be denied by the firewall protection, while secured VPN tunnels enhance the security of your data transmission during the network communication. Security and encryption are indispensable to IoT, and therefore fundamental functions of CR5201B.







Hardware Specifications
Model NameCR5201B
Cellular Interfaces
StandardsLTE Cat 1
Ethernet Interfaces
Standards802.3 for 10BaseT(X)
802.3u for 100BaseT(X)
Ports2 x RJ-45 10/100 BaseT(X), 1.5kV isolation
GNSS
StandardsGPS/GLONASS
LED Indicators
Power LED1x Green LED
Run LED1x Green LED
COM LED1x Tx Green LED; 1x Rx Green LED
DI/DO LED1x DI LED; 1x DO Green LED
LTE Signal4X Green LED
Antennas
Cellular2 x SMA(M) Antenna for LTE Cat.1
GNSS (Optional)1 x Wide-Band
Power Characteristics
Connector TypeTerminal Block
Input Voltage9 to 48 VDC
Reverse Polarity ProtectionYes
Physical Characteristics
HousingMetal housing, IP30 Protection
Dimension (W x H x D)136 x 95 x 30 mm
Weight TBD
InstallationDIN-Rail, Wall mount (Optional)
Reset ButtonYes
Environmental Limits
Operating Temperature-30 to +75 °C
Storage Temperature-40 to + 85 °C
Ambient Relative Humidity5% to 95% (non-condensing)
Ingress Protection RatingIP30
Software Specifications
ProtocolsTCP/IP, UDP, ARP, DHCP, SMTP, SNMP, Https, SNMP v1/v2/v3
SecurityOpenVPN, IPSEC, L2TP
Virtual COMYes
FirewallACL, NAT, Port-forwarding
VPNIPSEC, OpenVPN, L2TP
System ManagementWEB, SSH, Telnet
Power ManagementScheduled power management
- Sleep mode
- Hibernation mode

Multi waken-up mechanisms from sleep/hibernation modes
- Timer
Regulatory Approvals
SafetyEN62368-1
EMCCNS 15936/15598-1
EN55032, EN61000-6-4,
EN55024, EN61000-6-2,
FCC Part 15B, FCC Part 18
CECellularEN301489-1/-52,
EN301908-1 RSE for LTE and WCDMA
EN301511 for GSM
GNSSEN 55024: 2010 + A1: 2011
EN303413, EN301489-1/-3
FCCFCC Part 15B, FCC Part 18, FCC part15C (15.247)
Part 22H/24E/27L/27H/27F/27M/90R for LTE
NCCCNS 15936/15598-1
TestItemValueLevel
IEC 61000-4-2ESDContact
Discharge
Air Discharge
±4KV
±8KV
2
3
IEC 61000-4-3RSEnclosure Port10 (V/m) , 80-1000MHz
3 (V/m), 1.4-2.0GHz
10 (V/m), 2.0~2.7GHz
3
3
3
IEC 61000-4-4EFTDC Power Port
Signal Port
±1.0KV@ 5.0kHz
±1.0KV @ 5.0kHz
2
3
IEC 61000-4-5SurgeDC Power Port
Signal Port
Line-to-Line ±0.5KV
Line-to-Earth ±1.0KV
Line-to-Earth ±1.0KV
2
2
2
IEC 61000-4-6CSDC Power Port
Signal Port
10V, 150KHz to 80MHz, 80%AM
10V, 150KHz to 80MHz, 80%AM
3
3
IEC 61000-4-8PFMFEnclosure30A/m (r.m.s), 50Hz or 60Hz4
ShockIEC 60068-2-27
FreefallIEC 60068-2-32
VibrationIEC60068-2-64
Others- ROHS, including 2015 amendment
- REACH
- TSCA (US)
- TPCH (US)
- Conflict mineral free
MTBFTBD
Warranty5 years

DIMENSIONS & LAYOUT

ModelPart NumberCellularBandRS232/485 Serial PortSIM SlotsGPS
CR5201B-E-T-C11P1CR5201B0011GLTE Cat.1B1/B3/B7/B8/B20/B28-1-

Firmware

Version Name Time Size Download
v1.04 CR5201B Firmware 2023-05-04 14.44 MB

Datasheet

Version Name Time Size Download
v1.0 CR5201B Datasheet EN 2023-06-01 348.06 KB
v1.0 SE/CR5201B Datasheet EN 2023-04-27 411.13 KB

Manual

Version Name Time Size Download
v1.0 SE5201B/CR5201B User Manual 2023-04-27 3.43 MB

Hardware Installation Guide

Version Name Time Size Download
v1.0 SE5201B/CR5201B Hardware Installation Guide 2023-04-27 7.54 MB

STP/DXF drawings

Version Name Time Size Download
CR5201B STP 2023-04-27 3.96 MB

Test reports

Version Name Time Size Download
CR5201B NCC Certification 2023-05-11 712.29 KB
