PG5916 Series

16-Port RS232/485/422 with RJ45 and 2-Port Fast-Ethernet, DNP3, Modbus, IEC 60870-5-101/103/104, IEC 61850, Smart Grid Protocol Gateway

  • Dual 10/100Mbps Ethernet ports, Embedded PPTP, IPsec or OpenVPN for
    enhanced security
  •  Remotely monitor, manage, and control industrial field devices
  • Relay out indicator for Network link-status
  • LCM display with 4-key touch pad for configuration
  • Same hardware platform for different protocol conversion (Modbus TCP/ RTU/ASCII, DNP3.0 TCP or serial, IEC 60870-5-101, IEC 60870-5-103,
    IEC 60870-5-104, IEC 61850)
  • User friendly configuration with a Java-Based Windows utility
  • Integrated RSTP redundancy
PG5916 Series
PG5916 Series
PG5916 Series
PG5916 Series

Product Description
The PG5916 Series is a highly reliable and fault tolerant Industrial Protocol Gateway. Its powerful architecture provides seamless conversion between the different protocols Ethernet or Serial based. The serial devices communicating on different protocols could be integrated into the system and extend its reach over the gateway’s redundant Ethernet. This device is designed to work in most demanding industries such as power substations, power generation, oil and gas, farming and manufacturing.

The configuration carried out through a use friendly, Java- Based Windows Utility called eNode Designer. It allows configuring target platforms, set device properties and protocol data point mapping. To do so, a project file representing the system should be created. This will include devices and the protocol applications running on them. The configuration is completely dependent on the “eNode Module” which represents that device or  application – but may include things such as changing the communication port settings and defining where data point information enters and leaves the eNode Designer system.

PG5916 Series embeds an additional layer of security, allowing the devices to be deployed in topologies that request data to flow through the Internet and preventing sensitive control and monitoring data to be readable from malicious activities. IPsec VPN encryption, configurable in both peer-to-peer and peer-to-side modes will make sure the data passing is encrypted through a strong 128, 192 or 256-bit AES encryption.

Application
The protocol gateway’s embedded protocol stacks allow
- Seamless conversion
- Exception/error Management
- Unsolicited event management for the protocols requiring them (such as DNP3)
- High performance
- Low cost

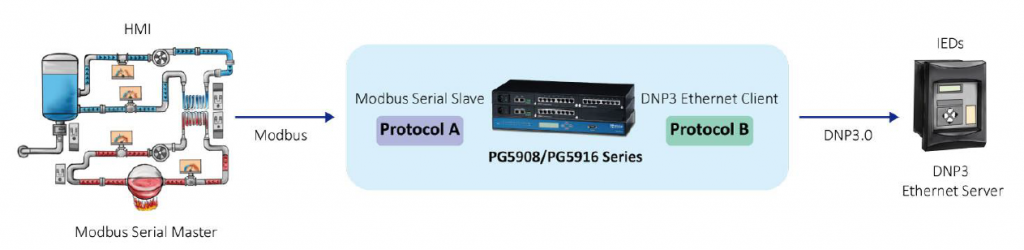

The example shows how to Easily connect a Modbus Serial HMI, through ATOP’s Protocol Gateway to a DNP3.0 IED. The host HMI has the role of a Modbus Serial Master while the end-device to be accessed is a DNP3.0 Ethernet Server.
ATOP’s protocol Gateway acts towards the HMI seamlessly as a Modbus Serial Slave, answering the poll commands or the write commands required by the Host by its virtual Modbus ID. Meanwhile, it acts as a DNP3.0 Ethernet Client, with regard to the end-device whose DNP3.0 address is mapped to the virtual Modbus ID that the HMI is accessing.

Be careful! – all gateway functions listed in the datasheet refer to the “Gateway” role, and not which “host” or “slave” the gateway is connected to. In this example, the SKU shown is “MBSS-DNEC” (Modbus Serial Slave to DNP3.0 Ethernet Client)

Network Interface
Compliance IEEE 802.3 10BaseT
IEEE 802.3u 100BaseT(X)
LAN ModeDual Subnets or RSTP LAN Redundancy
Ethernet Port2x RJ-45
Serial Interface
ConnectorRJ-45
Ports16
ModeRS-232/422/485, software selectable
Baud Rate1,200 ~ 921,600 bps
ParityNone, Odd, Even
Data Bits5, 6, 7, 8
Stop Bits1, 2
Software
ProtocolsIPv4, ARP, ICMP, TCP, UDP, DHCP Client, DNS Client, Telnet, HTTP, HTTPS, SMTP/TLS,
SNMP v1/v2c/v3, Syslog, RSTP, OpenVPN or IPsec VPN (peer-to-peer or peer-to-side),
with a maximum VPN throughput of 37.9Mbps(*), and PPTP
Protocol specificationsRefer to datasheet
PowerValue
Rated Supply VoltageDC version: 24-48VDC; US-EU version: 100-240 VAC (EU or US Plug)
Input Voltage RangeDC version: 24-48VDC; US-EU version: 90-264 VAC (EU or US Plug)
Power Consumption0.54A @ 24 VDC
0.21A @ 100 VAC
ConnectorIEC 60320-1 C14 AC Power Inlet (AC models)
5.08mm 3-pin Lockable Terminal Block (DC models)
Power RedundancyNo
Reverse Polarity ProtectionYes (DC version only)
Physical CharacteristicsValue
HousingIP30, metal housing
Dimension (W x H x D)436 mm x 43.5 mm x 200 mm
Weight3,000g (8-port version); 3,200 g (16-port version)
Installation19’’ Rack-Mount (Kit included)
Reset ButtonYes
Environmental Limits
Operating Temperature-20°C~70°C (-4°F~158°F)
Storage Temperature-40°C~85°C (-40°F~185°F)
Ambient Relative Humidity5%~95%, 55°C (Non-condensing)
CertificationStandard
SafetyEN60950-1:2006; EN62368-1
EMCFCC Part 15, Subpart B, Class A
EN 55032, Class A
EN 61000-3-2
EN 61000-3-3
EN 55024
RoHS 2Yes
StandardItemTestValueLevel
IEC 61000-4-2ESDContact Discharge±8kV (For AC Version)4
IEC 61000-4-2ESDAir Discharge±15kV (For AC Version)4
IEC 61000-4-2ESDContact Discharge±6kV (For DC Version)3
IEC 61000-4-2ESDAir Discharge±8kV (For DC Version)3
IEC 61000-4-3RSRadiated (enclosure)10 V/m3
IEC 61000-4-4EFTAC Power Port±4.0kV4
IEC 61000-4-4EFTDC Power Port±4.0kV4
IEC 61000-4-4EFTSignal Port±2.0KV3
IEC 61000-4-5SurgeAC Power Port (L-2-L)±2.0KV4
IEC 61000-4-5SurgeAC Power Port (L-2-E)±4.0KV4
IEC 61000-4-5SurgeDC Power Port (L-2-L)±1.0KV3
IEC 61000-4-5SurgeDC Power Port (L-2-E)±2.0KV3
IEC 61000-4-5SurgeSignal Port (L-2-L)±2.0KV4
IEC 61000-4-6CSAC Power Port10 V rms3
IEC 61000-4-6CSDC Power Port10 V rms3
IEC 61000-4-6CSSignal Port10 V rms3
IEC 61000-4-8PFMFEnclosure1 A/m3
IEC 61000-4-11DIPAC Power Port30% Reduction (Voltage Dips),
25/30 Cycle
>95% Reduction (Voltage Dips),
0.5 period

100% Reduction (Voltage Inter-
ruption): 250/300 Cycle
-
CertificationStandard
ShockIEC 60068-2-27
DropISTA Test Procedure 2A
VibrationIEC 60068-2-64
Warranty5 Years
MTBFPG5908-SiS-DC: 19.00 years; PG5908-SiS-US/EU: 19.03 years
PG5916-SiS-DC: 13.38 years; PG5916-SiS-US/EU: 13.38 years
MODEL NAME DESCRIPTION
PG5916-DCInd. 16-Port Protocol Gateway,RS-232/422/485 Software Selectable, DC TB3
PG5916-EUInd. 16 Port Protocol Gateway, RS-232/422/485 Software Selectable, AC Inlet, EU Plug
PG5916-USInd. 16 Port Protocol Gateway, RS-232/422/485 Software Selectable, AC Inlet, US Plug
PG5916-SiS-DCInd. 16 Port Protocol Gateway, RS-422/485 Software Selectable, 2.5kV isolation, DC TB3
PG5916-SiS-EUInd. 16 Port Protocol Gateway, RS-422/485 Software Selectable, 2.5kV isolation, AC Inlet, EU Plug
PG5916-SiS-USInd. 16 Port Protocol Gateway, RS-422/485 Software Selectable, 2.5kV isolation, AC Inlet, US Plug
Software CodeDescription
01SS-03SMIEC 60870-5-101 Serial Slave to IEC 60870-5-103 Serial Master
01SS-04ECIEC 60870-5-101 Serial Slave to IEC 60870-5-104 Ethernet Client
01SS-50ECIEC 60870-5-101 Serial Slave to IEC 61850 Client
01SS-DNECIEC 60870-5-101 Serial Slave to DNP3 Ethernet Client
01SS-DNSMIEC 60870-5-101 Serial Slave to DNP3 Serial Master
01SS-MBECIEC 60870-5-101 Serial Slave to Modbus Ethernet Client
01SS-MBSMIEC 60870-5-101 Serial Slave to Modbus Serial Master
04ES-01SMIEC 60870-5-104 Ethernet Server to IEC 60870-5-101 Serial Master
04ES-03SMIEC 60870-5-104 Ethernet Server to IEC 60870-5-103 Serial Master
04ES-50ECIEC 60870-5-104 Ethernet Server to IEC 61850 Ethernet Client
04ES-DNECIEC 60870-5-104 Ethernet Server to DNP3 Ethernet Client
04ES-DNSMIEC 60870-5-104 Ethernet Server to DNP3 Serial Master
04ES-MBECIEC 60870-5-104 Ethernet Server to Modbus Ethernet Client
04ES-MBSMIEC 60870-5-104 Ethernet Server to Modbus Serial Master
50ES-01SMIEC 61850 Ethernet Server to IEC 60870-5-101 Serial Master
50ES-03SMIEC 61850 Ethernet Server to IEC 60870-5-103 Serial Master
50ES-04ECIEC 61850 Ethernet Server to IEC 60870-5-104 Ethernet Client
50ES-DNECIEC 61850 Ethernet Server to DNP3 Ethernet Client
50ES-DNSMIEC 61850 Ethernet Server to DNP3 Serial Master
50ES-MBECIEC 61850 Ethernet Server to Modbus Ethernet Client
50ES-MBSMIEC 61850 Ethernet Server to Modbus Serial Master
DNES-01SMDNP3 Ethernet Server to IEC 60870-5-101 Serial Master
DNES-03SMDNP3 Ethernet Server to IEC 60870-5-103 Serial Master
DNES-04ECDNP3 Ethernet Server to IEC 60870-5-104 Ethernet Client
DNES-50ECDNP3 Ethernet Server to IEC 61850 Ethernet Client
DNES-DNSMDNP3 Ethernet Server to DNP3 Serial Master
DNES-MBECDNP3 Ethernet Server to Modbus Ethernet Client
DNES-MBSMDNP3 Ethernet Server to Modbus Serial Master
DNSS-01SMDNP3 Serial Slave to IEC 60870-5-101 Serial Master
DNSS-03SMDNP3 Serial Slave to IEC 60870-5-103 Serial Master
DNSS-04ECDNP3 Serial Slave to IEC 60870-5-104 Ethernet Client
DNSS-50ECDNP3 Serial Slave to IEC 61850 Ethernet Client
DNSS-DNECDNP3 Serial Slave to DNP3 Ethernet Client
DNSS-MBECDNP3 Serial Slave to Modbus Ethernet Client
DNSS-MBSMDNP3 Serial Slave to Modbus Serial Master
MBES-01SMModbus Ethernet Server to IEC 60870-5-101 Serial Master
MBES-03SMModbus Ethernet Server to IEC 60870-5-103 Serial Master
MBES-04ECModbus Ethernet Server to IEC 60870-5-104 Ethernet Client
MBES-50ECModbus Ethernet Server to IEC 61850 Ethernet Client
MBES-DNECModbus Ethernet Server to DNP3 Ethernet Client
MBES-DNSMModbus Ethernet Server to DNP3 Serial Master
MBES-MBSMModbus Ethernet Server to Modbus Serial Master
MBSS-01SMModbus Serial Slave to IEC 60870-5-101 Serial Master
MBSS-03SMModbus Serial Slave to IEC 60870-5-103 Serial Master
MBES-50ECModbus Serial Slave to IEC 60870-5-104 Ethernet Client
MBSS-50ECModbus Serial Slave to IEC 61850 Client
MBSS-DNECModbus Serial Slave to DNP3 Ethernet Client
MBSS-DNSMModbus Serial Slave to DNP3 Serial Master
MBSS-MBECModbus Serial Slave to Modbus Ethernet Client
MODEL NAME PART NUMBERDESCRIPTION
SDR-75-2450500752240001G75W/3.2A DIN-Rail 24VDC power supply with 88~264VAC / 124~370VDC input
Power Adapter AD17-24C (US-Y)50500151240002GY-Type power adaptor,100-240VAC input, 0.6A @ 24VDC output, US plug
Power Adapter AD17-24D (EU-Y)50500151240012GY-Type power adaptor,100-240VAC input, 0.6A @ 24VDC output, EU plug
GDC-12059906861G120mm copper woven grounding cable
CBL-RJ45(8P)-DB9(M)-9050891781GRJ45 to DB9 Male Cable, 90cm
CBL-RJ45(8P)-DB9(M)-20050891951GRJ45 to DB9 Male Cable, 200cm
CBL-RJ45(8P)-DB9(F)-9050891791GRJ45 to DB9 Female Cable, 90cm
CBL-RJ45(8P)-DB9(F)-90-C50891971GRJ45 to DB9 Female Cross Over Cable, 90cm
CBL-RJ45(8)-DB9(F)-200-C50891961GRJ45 to DB9 Female Cross Over Cable, 200cm
RMK-718-Black70100000000040GRack Mount Mounting-Kit, Black
Power Cable (US)50801041G6 feet Power Cable, US
Power Cable (EU)50801051G6 feet Power Cable, EU
Fuse50709441GFuse
